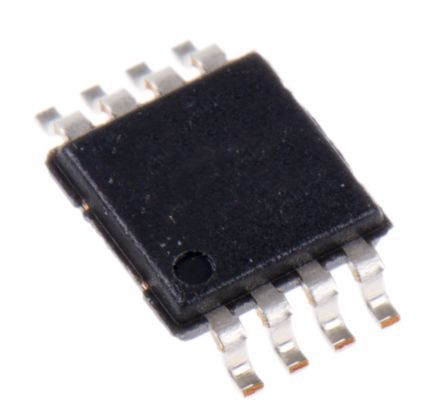

BA3472YFVM-CTR ROHM,, Op Amp, 4MHz, 8-Pin MSOP [BA3472YFVM-CTR]; 171-5768
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Gain Bandwidth Product | 4MHz |
| Output Type | Current |
| Typical Slew Rate | 10V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Automotive Standard | AEC-Q100 |
| Input Offset Current | 100nA |
| Height | 0.75mm |
| Output Current | 30 mA |
| Length | 3.25mm |
| Dimensions | 3.25 x 2.8 x 0.75mm |
| Typical Voltage Gain | 100 dB |
| Minimum Input Voltage | 3 V |
| Input Voltage Range | 3 → 36 V |
| Width | 2.8mm |
| Offset Voltage | 10mV |
| Maximum Input Voltage | 36 V |
