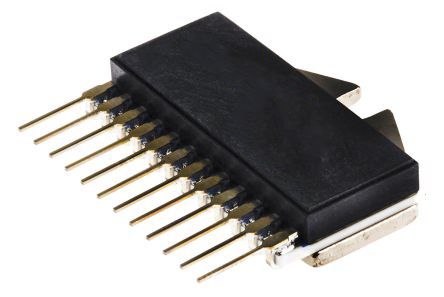

ROHM BP5067-12, AC-DC Converter 350mA, 11 → 13 V 12-Pin, SIP [BP5067-12]; 184-5355
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | SIP |
| Pin Count | 12 |
| Dimensions | 34.5 x 9.9 x 22mm |
| Length | 34.5mm |
| Width | 9.9mm |
| Height | 22mm |
| Maximum Input Voltage | 190 V |
| Maximum Operating Temperature | +80 °C |
| Maximum Output Current | 350mA |
| Maximum Output Voltage | 13 V |
| Minimum Input Voltage | 113 V |
| Minimum Operating Temperature | -20 °C |
| Typical Operating Supply Voltage | 141 V |
| Output Current Range | 0 → 350 mA |
| Minimum Output Voltage | 11 V |
| Output Voltage Range | 11 → 13 V |
| Input Voltage Range | 113 → 190 V |
| Minimum Output Current | 0mA |
| Operating Temperature Range | -20 → +80 °C |
