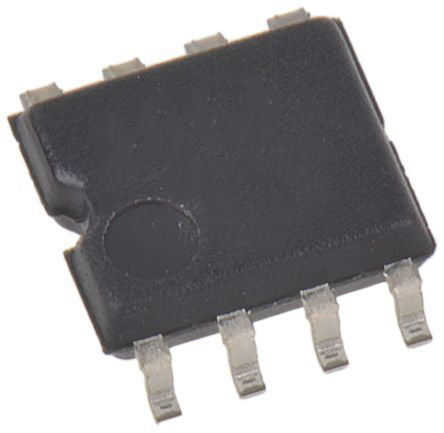

BU7242SF-E2 ROHM, CMOS, Op Amp, 900kHz, 5.5 V, 8-Pin SOP [BU7242SF-E2]; 168-1880
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | CMOS |
| Mounting Type | Surface Mount |
| Package Type | SOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 5.5 V |
| Typical Gain Bandwidth Product | 900kHz |
| Typical Slew Rate | 0.4V/µs |
| Maximum Operating Frequency | 1 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Dimensions | 5 x 4.4 x 1.39mm |
| Maximum Input Voltage | 5.5 V |
| Height | 1.39mm |
| Input Offset Current | 1pA |
| Width | 4.4mm |
| Typical Voltage Gain | 95 dB |
| Input Voltage Range | 1.8 → 5.5 V |
| Offset Voltage | 10mV |
| Minimum Input Voltage | 1.8 V |
| Length | 5mm |
| Output Current | 10 (Source) mA, 12 (Sink) mA |
