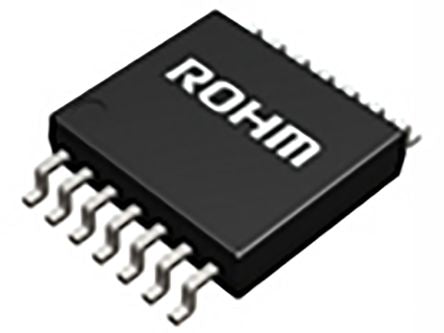

BU7244YFV-CE2 ROHM, CMOS, Op Amps, RRIO 1 kHz, 1.8 → 5.5 V, 14-Pin SSOP [BU7244YFV-CE2]; 184-8680
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | CMOS |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Typical Gain Bandwidth Product | 1MHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | ±0.9 to ±2.75V |
| Typical Slew Rate | 0.4V/µs |
| Maximum Operating Frequency | 1 kHz |
| Maximum Operating Temperature | 125 °C |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
| Length | 5mm |
| Output Current | 10 ( Source) mA, 12 ( Sink) mA |
| Maximum Input Voltage | ±2.75 V, 5.5 V |
| Input Offset Current | 1pA |
| Height | 1.15mm |
| Typical Voltage Gain | 100 dB |
| Offset Voltage | 12mV |
| Dimensions | 5 x 4.4 x 1.15mm |
| Width | 4.4mm |
| Rail to Rail | Rail to Rail Input/Output |
| Minimum Input Voltage | ±0.9 V, 1.8 V |
| Input Voltage Range | ±0.9 → ±2.75 V, 1.8 → 5.5 V |
