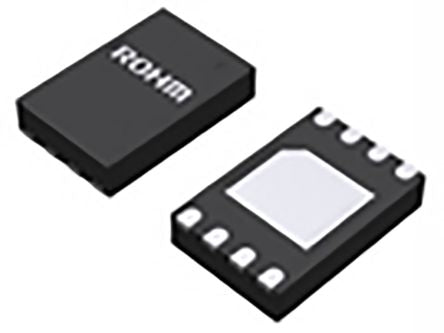

BU7262NUX-TR ROHM, CMOS, Op Amps 1 kHz, 1.8 → 5.5 V, 8-Pin VSON [BU7262NUX-TR]; 184-8740
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | CMOS |
| Mounting Type | Surface Mount |
| Package Type | VSON |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Typical Gain Bandwidth Product | 2MHz |
| Output Type | Swing |
| Typical Slew Rate | 1.1V/µs |
| Maximum Operating Frequency | 1 kHz |
| Maximum Operating Temperature | 85 °C |
| Minimum Operating Temperature | -40 °C |
| Input Offset Current | 1pA |
| Output Current | 10 ( Source) mA, 12 ( Sink) mA |
| Length | 3mm |
| Dimensions | 3 x 2 x 0.58mm |
| Minimum Input Voltage | 1.8 V |
| Typical Voltage Gain | 95 dB |
| Offset Voltage | 10mV |
| Width | 2mm |
| Maximum Input Voltage | 5.5 V |
| Input Voltage Range | 1.8 → 5.5 V |
| Height | 0.58mm |
