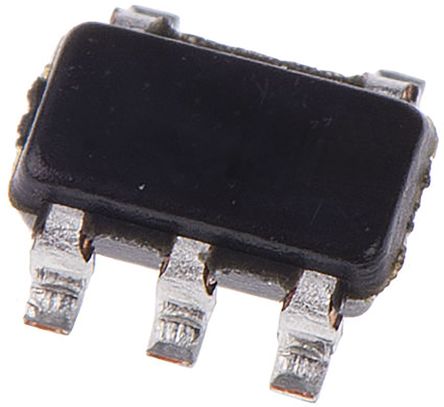

BU7265G-TR ROHM, Low Power, Op Amp, RRIO, 4kHz, 5 V, 5-Pin SSOP [BU7265G-TR]; 131-2779
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 5 V |
| Typical Gain Bandwidth Product | 4kHz |
| Typical Slew Rate | 2.4V/ms |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 1.1mm |
| Input Offset Current | 1pA |
| Output Current | 2.4 (Source) mA, 4 (Sink) mA |
| Length | 2.9mm |
| Dimensions | 2.9 x 1.6 x 1.1mm |
| Input Voltage Range | 1.8 → 5.5 V |
| Minimum Input Voltage | +1.8 V |
| Typical Voltage Gain | 95 dB |
| Offset Voltage | 8.5mV |
| Rail to Rail | Rail to Rail Input/Output |
| Width | 1.6mm |
| Maximum Input Voltage | 5.5 V |
