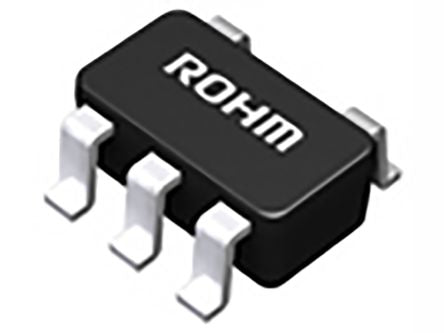

BU7411G-TR ROHM, CMOS, Op Amps, 1.6 → 5.5 V, 5-Pin SSOP [BU7411G-TR]; 184-8674
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | CMOS |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 1.6 → 5.5 V |
| Output Type | Swing |
| Typical Slew Rate | 2.4V/ms |
| Maximum Operating Temperature | 85 °C |
| Minimum Operating Temperature | -40 °C |
| Input Offset Current | 1pA |
| Output Current | 2.4 ( Source) mA, 4 ( Sink) mA |
| Length | 2.9mm |
| Dimensions | 2.9 x 1.6 x 1.1mm |
| Typical Voltage Gain | 95 dB |
| Height | 1.1mm |
| Width | 1.6mm |
| Offset Voltage | 8mV |
| Input Voltage Range | 1.6 → 5.5 V |
| Minimum Input Voltage | 1.6 V |
| Maximum Input Voltage | 5.5 V |
