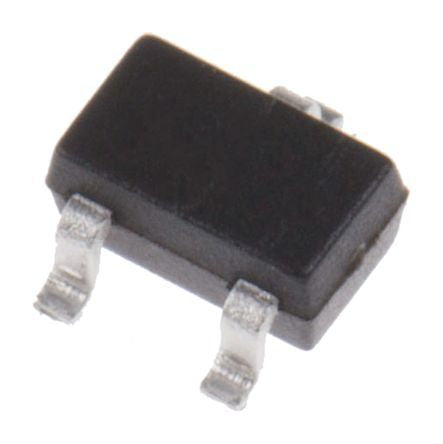

ROHM, DTA114WUAT106 PNP Resistor-equipped Transistor, -100 mA -50 V 10 kΩ, Ratio Of 0.47, 3-Pin SOT-323 (SC-70) [DTA114WUAT106]; 178-6033
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | -100 mA |
| Maximum Collector Emitter Voltage | -50 V |
| Typical Input Resistor | 10 kΩ |
| Mounting Type | Surface Mount |
| Base-Emitter Resistor | 4.7kΩ |
| Package Type | SOT-323 (SC-70) |
| Pin Count | 3 |
| Minimum DC Current Gain | 24 |
| Transistor Configuration | Single |
| Maximum Power Dissipation | 200 mW |
| Typical Resistor Ratio | 0.47 |
| Configuration | Single |
| Height | 0.9mm |
| Dimensions | 2.1 x 1.35 x 0.9mm |
| Maximum Operating Temperature | +150 °C |
| Length | 2.1mm |
| Width | 1.35mm |
