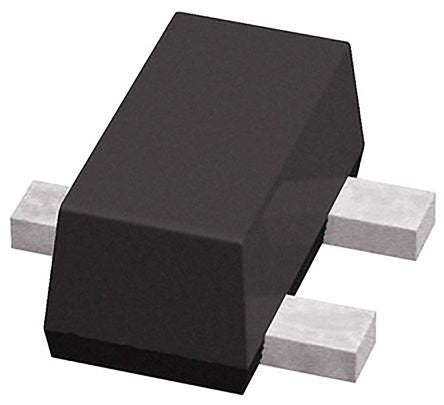

ROHM, DTC014YEBTL NPN Digital Transistor, 100 mA 50 V 10 kΩ, Ratio Of 4.7, 3-Pin SOT-416FL [DTC014YEBTL]; 131-4635
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Typical Input Resistor | 10 kΩ |
| Mounting Type | Surface Mount |
| Base-Emitter Resistor | 47kΩ |
| Package Type | SOT-416FL |
| Pin Count | 3 |
| Minimum DC Current Gain | 80 |
| Maximum Power Dissipation | 150 mW |
| Transistor Configuration | Common Emitter |
| Maximum Emitter Base Voltage | 50 V |
| Typical Resistor Ratio | 4.7 |
| Configuration | Single |
| Length | 1.7mm |
| Maximum Operating Temperature | +150 °C |
| Width | 0.96mm |
| Height | 0.8mm |
| Dimensions | 1.7 x 0.96 x 0.8mm |
