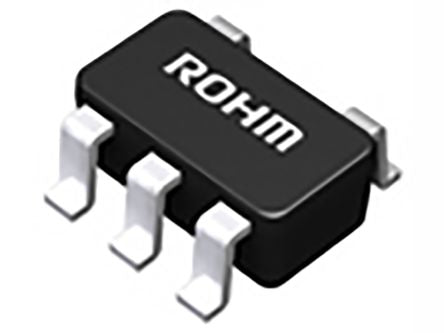

LMR1802G-LBTR ROHM,, Op Amps 1 kHz, 2.5 → 5.5 V, 5-Pin SSOP [LMR1802G-LBTR]; 184-8763
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | CMOS, Low Noise |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 2.5 → 5.5 V |
| Typical Gain Bandwidth Product | 3MHz |
| Output Type | Swing |
| Typical Dual Supply Voltage | ±1.25 to ±2.75V |
| Typical Slew Rate | 1.1V/µs |
| Maximum Operating Frequency | 1 kHz |
| Maximum Operating Temperature | 125 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | ±1.25 V, 2.5 V |
| Typical Voltage Gain | 140 dB |
| Offset Voltage | 500µV |
| Width | 1.6mm |
| Maximum Input Voltage | ±2.75 V, 5.5 V |
| Height | 1.1mm |
| Typical Input Voltage Noise Density | 7.8nV/√Hz |
| Input Offset Current | 0.5pA |
| Dimensions | 2.9 x 1.6 x 1.1mm |
| Length | 2.9mm |
| Output Current | 50 ( Sink) mA, 50 ( Source) mA |
| Input Voltage Range | ±1.25 → ±2.75 V, 2.5 → 5.5 V |
