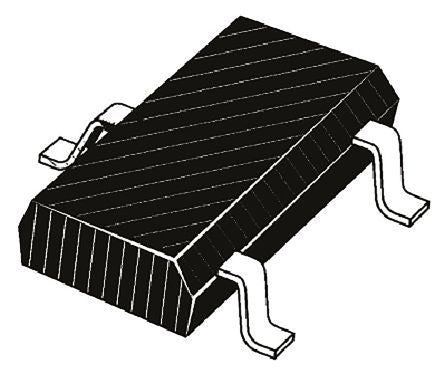

RQ5A030APTL P-Channel MOSFET, 3 A, 12 V RQ5A030AP, 3-Pin SOT-346T ROHM [RQ5A030APTL]; 124-6804
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.125 |
| Maximum Drain Source Voltage | 12 V |
| Package Type | SOT-346T (SC-96) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 180 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 0.3V |
| Maximum Power Dissipation | 1 W |
| Maximum Gate Source Voltage | -8 V |
| Number of Elements per Chip | 1 |
| Length | 3mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Minimum Operating Temperature | -55 °C |
| Series | RQ5A030AP |
| Width | 1.8mm |
| Height | 0.95mm |
| Typical Gate Charge @ Vgs | 16 nC @ 4.5 V |
