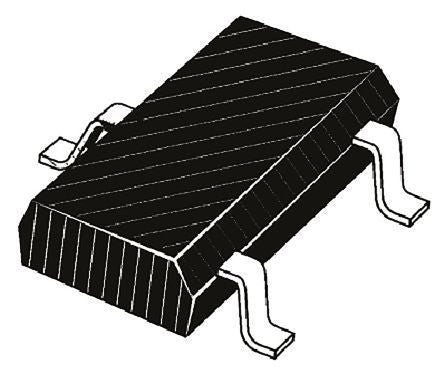

RQ5C025TPTL P-Channel MOSFET, 2.5 A, 20 V RTR025P02, 3-Pin TSMT ROHM [RQ5C025TPTL]; 124-6832
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 2.5 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | TSMT |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 160 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 0.7V |
| Maximum Power Dissipation | 1 W |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Width | 1.6mm |
| Height | 0.85mm |
| Series | RTR025P02 |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Typical Gate Charge @ Vgs | 7 nC @ 4.5 V |
| Length | 2.9mm |
| Transistor Material | Si |
