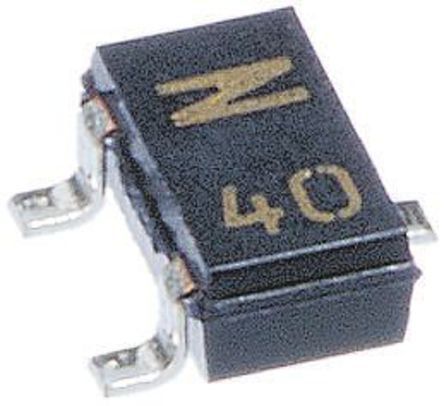

RQ5E070BNTCL N-Channel MOSFET, 7 A, 30 V RQ5E070BN, 3-Pin SOT-346T ROHM [RQ5E070BNTCL]; 133-3301
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.291666666666667 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-346T (SC-96) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 20.4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Typical Gate Charge @ Vgs | 23 nC @ 10 V |
| Height | 0.95mm |
| Width | 1.8mm |
| Series | RQ5E070BN |
