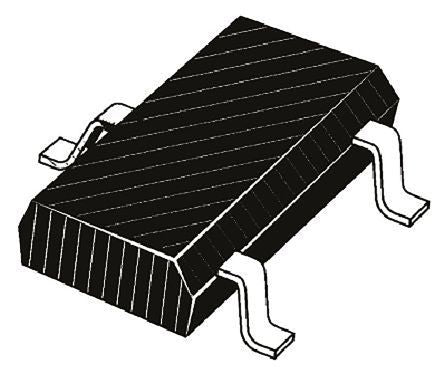

RQ5H025TNTL N-Channel MOSFET, 2.5 A, 45 V RTR025N05, 3-Pin SOT-346T ROHM [RQ5H025TNTL]; 124-6831
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 2.5 A |
| Maximum Drain Source Voltage | 45 V |
| Package Type | SOT-346T (SC-96) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 175 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 1 W |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Width | 1.8mm |
| Height | 0.95mm |
| Minimum Operating Temperature | -55 °C |
| Series | RTR025N05 |
| Length | 3mm |
| Typical Gate Charge @ Vgs | 3.2 nC @ 4.5 V |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
