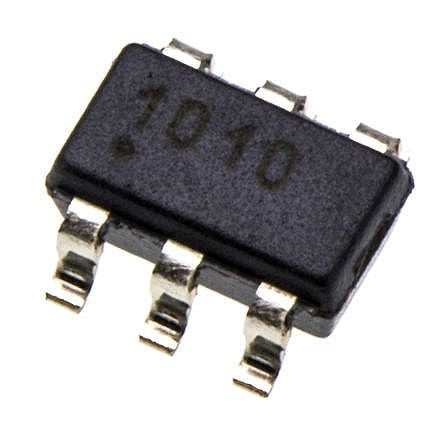

RQ6E050AJTCR N-Channel MOSFET, 5 A, 30 V RQ6E050AJ, 6-Pin SOT-457 (SC-74) ROHM [RQ6E050AJTCR]; 133-3306
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.208333333333333 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-457 (SC-74) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 50 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 1.25 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
| Height | 0.95mm |
| Width | 1.8mm |
| Series | RQ6E050AJ |
| Typical Gate Charge @ Vgs | 4.7 nC @ 4.5 V |
| Length | 3mm |
