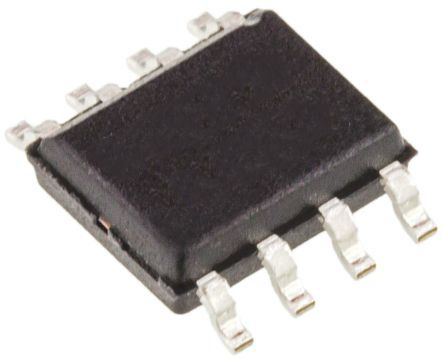

RS1G300GNTB N-Channel MOSFET, 80 A, 40 V RS1G300GN, 8-Pin HSOP ROHM [RS1G300GNTB]; 183-5491
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 80 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | HSOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 35 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 5mm |
| Height | 1.05mm |
| Length | 5.8mm |
| Maximum Operating Temperature | 150 °C |
| Forward Diode Voltage | 1.2V |
| Series | RS1G300GN |
| Typical Gate Charge @ Vgs | 56.8 nC @ 10 V |
