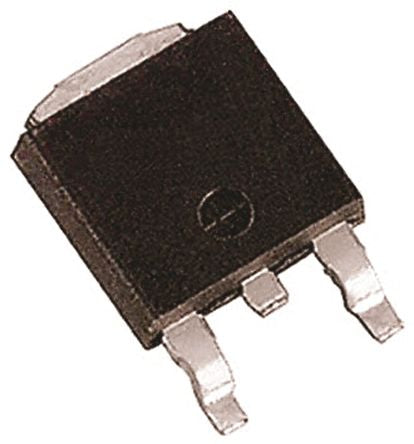

RSD050N10TL N-Channel MOSFET, 5 A, 100 V, 3-Pin SC-63 ROHM [RSD050N10TL]; 826-7753
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.208333333333333 |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SC-63 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 205 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 15 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 5.5mm |
| Height | 2.3mm |
| Typical Gate Charge @ Vgs | 14 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Length | 6.5mm |
