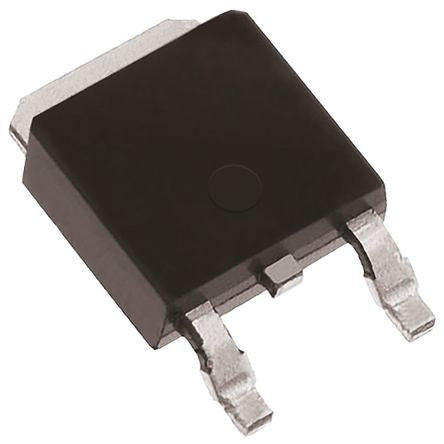

RSD160P05TL P-Channel MOSFET, 16 A, 45 V RSD160P05, 3+Tab-Pin SOT-428 ROHM [RSD160P05TL]; 124-6821
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 16 A |
| Maximum Drain Source Voltage | 45 V |
| Package Type | SOT-428 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 70 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 20 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 5.5mm |
| Series | RSD160P05 |
| Height | 2.3mm |
| Typical Gate Charge @ Vgs | 16 nC @ 5 V |
| Length | 6.5mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
