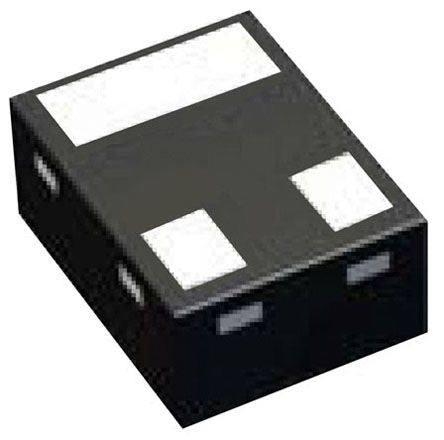

RV1C001ZPT2L P-Channel MOSFET, 100 mA, 20 V RV1C001ZP, 3-Pin DFN ROHM [RV1C001ZPT2L]; 133-2849
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 100 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 40 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 0.3V |
| Maximum Power Dissipation | 100 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -10 V, +10 V |
| Number of Elements per Chip | 1 |
| Series | RV1C001ZP |
| Length | 0.65mm |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
| Width | 0.85mm |
| Height | 0.34mm |
