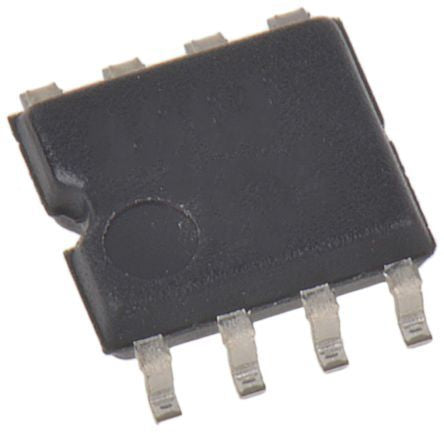

RXH090N03GZETB N-Channel MOSFET, 9 A, 30 V RXH090N03, 8-Pin SOP ROHM [RXH090N03GZETB]; 171-9771
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.375 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 27 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Height | 1.75mm |
| Typical Gate Charge @ Vgs | 6.8 nC @ 5 V |
| Minimum Operating Temperature | -55 °C |
| Series | RXH090N03 |
| Forward Diode Voltage | 1.2V |
| Width | 3.9mm |
| Length | 5mm |
| Maximum Operating Temperature | +150 °C |
