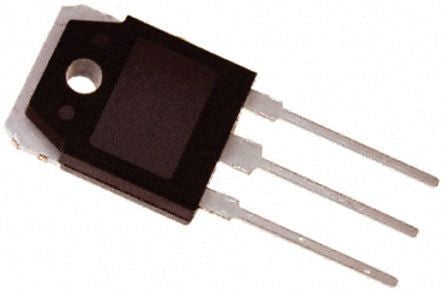

SCT2H12NZGC11 N-Channel MOSFET, 3.7 A, 1700 V SCT2H12NZ, 3+Tab-Pin TO-3PFM ROHM [SCT2H12NZGC11]; 133-2860
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 3.7 A |
| Maximum Drain Source Voltage | 1700 V |
| Package Type | TO-3PFM |
| Mounting Type | Through Hole |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 1.5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 1.6V |
| Maximum Power Dissipation | 35 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -6 V, +22 V |
| Number of Elements per Chip | 1 |
| Series | SCT2H12NZ |
| Forward Diode Voltage | 4.3V |
| Maximum Operating Temperature | +175 °C |
| Transistor Material | Si |
| Length | 16mm |
| Typical Gate Charge @ Vgs | 14 nC @ 18 V |
| Height | 21mm |
| Width | 5mm |
