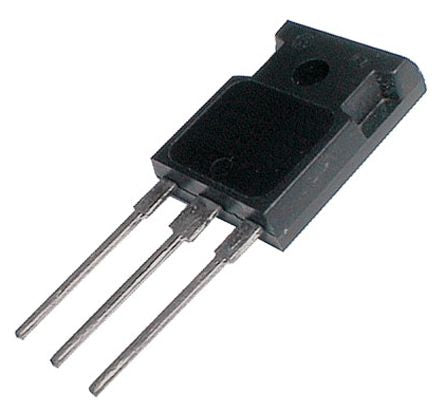

SCT3080KLGC11 SiC N-Channel MOSFET, 31 A, 1200 V, 3-Pin TO-247N ROHM [SCT3080KLGC11]; 150-1477
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 31 A |
| Maximum Drain Source Voltage | 1200 V |
| Package Type | TO-247N |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 120 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5.6V |
| Minimum Gate Threshold Voltage | 2.7V |
| Maximum Power Dissipation | 165 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 22 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Height | 21mm |
| Typical Gate Charge @ Vgs | 60 nC @ 18 V |
| Transistor Material | SiC |
| Width | 5mm |
| Length | 16mm |
