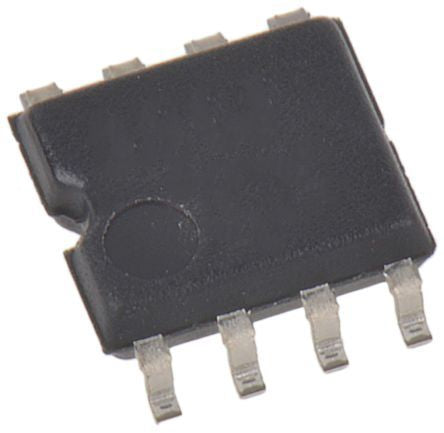

SH8M24GZETB Dual N/P-Channel MOSFET, 6 (N Channel, P Channel) A, 45 (N Channel) V, 45 (P Channel) V SH8M24GZE, 8-Pin [SH8M24GZETB]; 171-9905
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | P Channel) A, 6 (N Channel |
| Maximum Drain Source Voltage | 45 V |
| Package Type | SOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 92 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5 (N Channel) V, 2.5 (P Channel) V |
| Minimum Gate Threshold Voltage | 1 (N Channel) V, 1 (P Channel) V |
| Maximum Power Dissipation | 3.1 W |
| Maximum Gate Source Voltage | P Channel) V, ±20 (N Channel |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Series | SH8M24GZE |
| Height | 1.6mm |
| Typical Gate Charge @ Vgs | 6.8 nC @ 5 V (N Channel), 13 nC @ 5 V (P Channel) |
| Width | 4.05mm |
| Length | 5.2mm |
