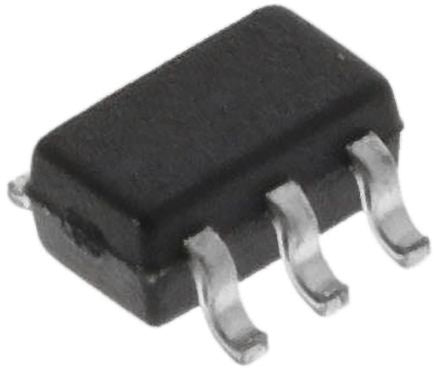

Standard Bipolar Transistors [SSTA56T116]; 183-5409
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | -80 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 350 mW |
| Minimum DC Current Gain | 100 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | -80 V |
| Maximum Emitter Base Voltage | -4 V |
| Maximum Operating Frequency | 50 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Saturation Voltage | -250 mV |
| Width | 1.5mm |
| Dimensions | 3.1 x 1.5 x 1.15mm |
| Length | 3.1mm |
| Height | 1.15mm |
