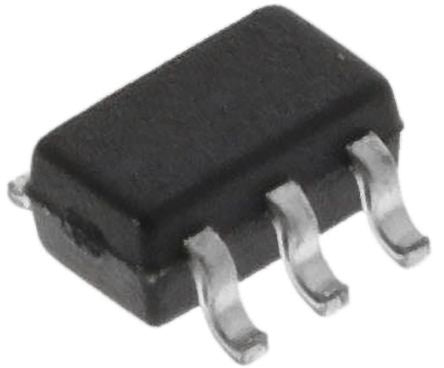

Standard Bipolar Transistors [UMZ1NTR]; 183-5478
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum DC Collector Current | 150 (NPN) mA, 150 (PNP) mA |
| Maximum Collector Emitter Voltage | -50 (PNP) V, 50 (NPN) V |
| Package Type | SOT-363 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 150 mW |
| Minimum DC Current Gain | 120 |
| Maximum Collector Base Voltage | -60 (PNP) V, 60 (NPN) V |
| Maximum Emitter Base Voltage | -6 (PNP) V, 7 (NPN) V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Height | 0.9mm |
| Maximum Operating Temperature | +150 °C |
| Length | 2.1mm |
| Dimensions | 2.1 x 1.35 x 0.9mm |
| Maximum Collector Emitter Saturation Voltage | -500 (PNP) mV, 400 (NPN) mV |
| Width | 1.35mm |
