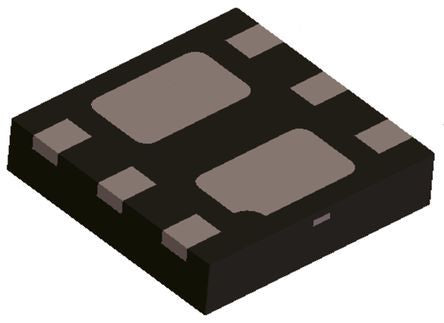

UT6K3TCR Dual N-Channel MOSFET, 5.5 A, 30 V UT6K3, 8-Pin DFN ROHM [UT6K3TCR]; 133-2953
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 5.5 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 63 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 2 W |
| Transistor Configuration | Dual Base |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 2 |
| Width | 2.1mm |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
| Series | UT6K3 |
| Height | 0.6mm |
| Typical Gate Charge @ Vgs | 4 nC @ 4.5 V |
| Length | 2.1mm |
