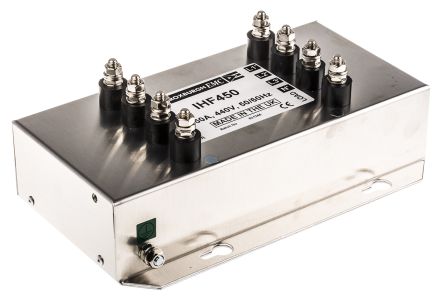

Roxburgh EMC IHF Series 50A 480 V ac 60Hz Flange Mount RFI Filter, with Stud Terminals, Single Phase [IHF450]; 188-9185
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 50A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Stud |
| Number of Phases | 1 |
| Series | IHF |
| Operating Frequency | 60Hz |
| Length | 230mm |
| Depth | 147mm |
| Capacitance | 2.2µF |
| Height | 55mm |
| Inductance | 280 μH |
| Dimensions | 230 x 147 x 55mm |
| Leakage Current | 3.5 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Resistance | 1mΩ |
| Power Loss | 2.5W |
| Standards Met | EN 60939 |
