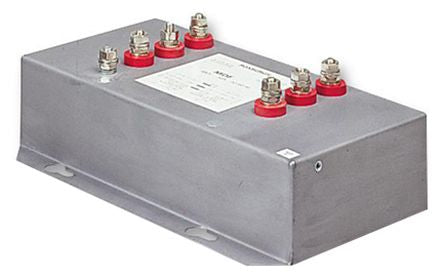

Roxburgh EMC MDF Series 50A 480 V ac 60Hz Flange Mount RFI Filter, with Stud Terminals, Single Phase [MDF350]; 188-9292
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 50A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Stud |
| Number of Phases | 1 |
| Series | MDF |
| Operating Frequency | 60Hz |
| Length | 230mm |
| Depth | 147mm |
| Height | 55mm |
| Capacitance | 2.2µF |
| Inductance | 550 μH |
| Dimensions | 230 x 147 x 55mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 14.5 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 1.8mΩ |
| Power Loss | 4.5W |
| Standards Met | UL 1283 |
