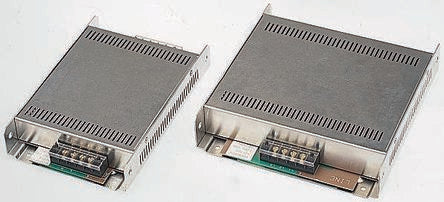

Roxburgh EMC MIF Series 10A 240 V ac 60Hz RFI Filter, with Screw Terminals [MIF10]; 246-3699
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 240 V ac |
| Termination Style | Screw |
| Series | MIF |
| Number of Stages | Multi Stage |
| Operating Frequency | 60Hz |
| Length | 214mm |
| Depth | 145mm |
| Height | 43.5mm |
| Capacitance | 3.3µF |
| Dimensions | 214 x 145 x 43.5mm |
| Inductance | 10.3 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 45 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 13.5mΩ |
| Standards Met | UL 1283 |
| Power Loss | 1.35W |
