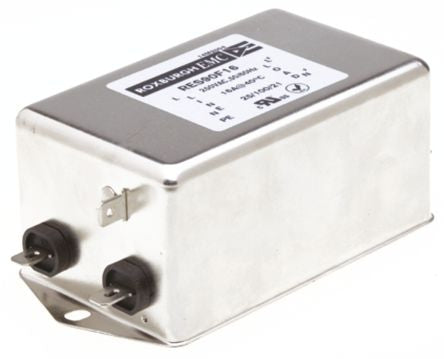

Roxburgh EMC RES90 Series 16A 250 V ac DC → 60Hz Chassis Mount RFI Filter, with Fast-On Terminals, Single Phase [RES90F16]; 806-8256
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 16A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES90 |
| Number of Stages | Multi Stage |
| Operating Frequency | DC → 60Hz |
| Length | 115mm |
| Depth | 57mm |
| Capacitance | 3 μF, 22 nF |
| Height | 45mm |
| Dimensions | 115 x 57 x 45mm |
| Inductance | 8 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 1.02 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 220kΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
