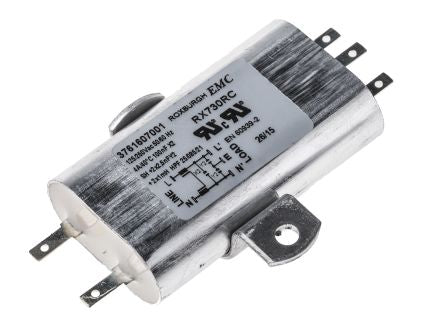

Roxburgh EMC RX730 Series 4A 250 V ac 60Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase [RX730RC]; 210-409
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 4A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Series | RX730 |
| Operating Frequency | 60Hz |
| Length | 68mm |
| Depth | 29.5mm |
| Height | 16mm |
| Inductance | 1 x 2 mH |
| Dimensions | 68 x 29.5 x 16mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.24 mA |
| Maximum Operating Temperature | +85°C |
