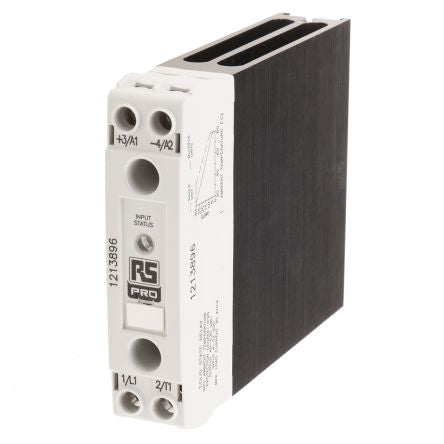

RS PRO 30 A SP Solid State Relay, DIN Rail, 530 Vrms Maximum Load; 121-3896
Mã kho: 1213896
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 30 A |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 48 Vrms |
| Maximum Load Voltage | 530 Vrms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Contact Configuration | SP |
| Terminal Type | Screw |
| Dimensions | 93.2 x 22.5 x 116.5mm |
| Depth | 116.5mm |
| Maximum Operating Temperature | +60°C |
| Control Voltage Range | 4 → 32 V dc |
| Capacitance | 8pF |
| Length | 22.5mm |
| Height | 93.2mm |
| Special Features | LED Indicator |
| Off State Leakage Current | 1 mA rms |
| Relay Type | Solid State Relay |
| Minimum Operating Temperature | -20°C |
| Load Voltage Range | 48 → 530Vrms |
| Standards Met | RoHS Compliant |
