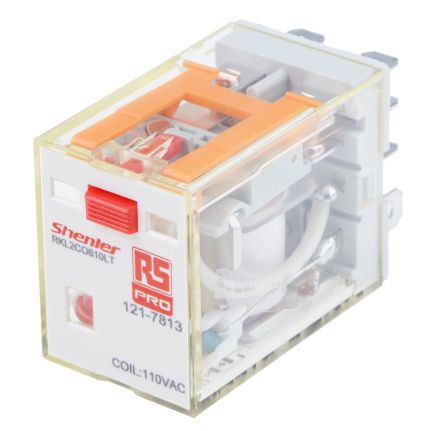

RS PRO DPDT Non-Latching Relay Plug In, 110V ac Coil, 10 A Non-Latching Relay; 121-7813
Mã kho: 1217813
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 110 V ac |
| Coil Power | 300W |
| Isolation Coil To Contact | 2kV ac |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Terminal Type | Plug In |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 30V dc |
| Height | 36mm |
| Depth | 21.5mm |
| Maximum Switching Power DC | 900 mW |
| Maximum Switching Power AC | 1.2 VA |
| Length | 28mm |
| Standards Met | CE, CQC, CULus, RoHS Compliant |
