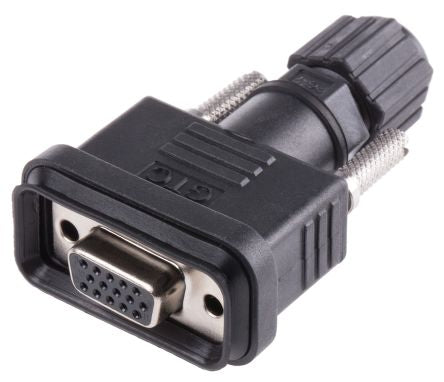

RS PRO GTC Sealed Series Cable Mount, 15 Pin Waterproof D-Sub D-sub Connector Socket, Shell Size E; 122-3045
Mã kho: 1223045
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| D Connector Type | Waterproof D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | E |
| Current Rating | 5A |
| Housing Material | PBT |
| Voltage Rating | 1 kV ac |
| Length | 40mm |
| Width | 21mm |
| Depth | 67.5mm |
| Dimensions | 40 x 21 x 67.5mm |
| Maximum Operating Temperature | +80°C |
| Contact Plating | Gold |
| Series | GTC Sealed |
| Minimum Operating Temperature | -40°C |
| Contact Material | Copper Alloy |
