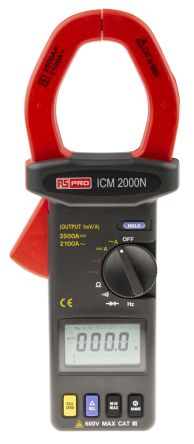

RS PRO ICM2000N Clamp Meter, Max Current 2.1kA ac, 2.5kA dc CAT III 600 V; 123-2206
Mã kho: 1232206
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 2.1kA ac |
| Absolute Maximum DC Current Measurement | 2.5kA dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Model Number | ICM2000N |
| AC Current Measurement Resolution | 100mA |
| DC Current Measurement Resolution | 100mA |
| Best DC Current Accuracy | ±(1.5% rdg + 3dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(1.5% rdg + 3dgts) |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance |
| DC Voltage Measurement Resolution | 100µV |
| Dimensions | 112 x 46 x 271mm |
| Resistance Measurement Resolution | 100mΩ |
| Length | 112mm |
| Width | 46mm |
| Power Source | Battery |
| Height | 271mm |
| Minimum Operating Temperature | 0°C |
| AC Voltage Measurement Resolution | 100µV |
| Jaw Capacity Busbars | 55mm |
| Weight | 647g |
| Safety Category Level | CAT III |
| Maximum Conductor Size | 55mm |
| Display Type | LCD |
| Maximum Operating Temperature | +40°C |
| Best Resistance Measurement Accuracy | ±1.5 % ± 3 Digits |
| Safety Category | CAT III 600 V |
| Battery Type | IEC 6F22, NEDA 1604, 9V |
| Safety Category Voltage | 600V |
