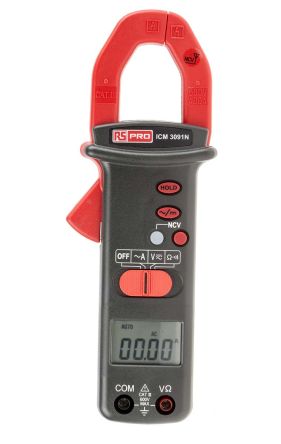

RS PRO ICM3091N Clamp Meter, Max Current 400A ac; 123-2242
Mã kho: 1232242
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 400Ω |
| Model Number | ICM3091N |
| AC Current Measurement Resolution | 10mA |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(2% rdg + 10dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 10dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 5dgts) |
| DC Voltage Measurement Resolution | 100mV |
| Dimensions | 64 x 31 x 192mm |
| Battery Type | AA |
| Resistance Measurement Resolution | 100mΩ |
| Maximum Operating Temperature | +40°C |
| Display Type | LCD |
| Functions Measured | AC Current, AC Voltage, Continuity Beeper, DC Voltage, Resistance |
| Best Resistance Measurement Accuracy | ±1 % + 5 Digits |
| Length | 64mm |
| AC Voltage Measurement Resolution | 100mV |
| Power Source | Battery |
| Width | 31mm |
| Jaw Capacity Busbars | 25.4mm |
| Minimum Operating Temperature | 0°C |
| Height | 192mm |
| Non-Contact Voltage Detector | Yes |
| Battery Life | 100 h |
| Weight | 250g |
