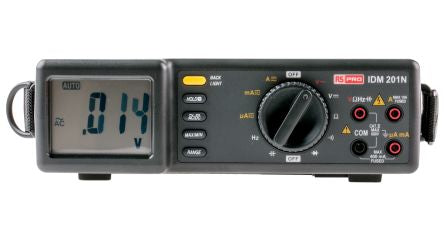

RS PRO IDM201 Bench Digital Multimeter, 10A ac 600V ac 10A dc 600V dc; 123-3219
Mã kho: 1233219
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Bench |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Resistance Measurement | 20MΩ |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Capacitance Measurement | 2mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance |
| True RMS | Yes |
| Maximum Frequency | 20MHz |
| Display Type | LCD |
| Model Number p | IDM201 |
| DC Current Measurement Resolution | 0.1µA dc |
| AC Current Measurement Resolution | 0.1µA ac |
| DC Voltage Measurement Resolution | 100µV dc |
| Resistance Measurement Resolution | 100mΩ |
| AC Voltage Measurement Resolution | 100µV ac |
| Capacitance Measurement Resolution | 1pF |
| Weight | 1.3 (Without Power Cord)kg |
| Battery Life | 1200 h |
| Height | 73mm |
| Minimum Operating Temperature | 0°C |
| Safety Category Level | CAT II, CAT III |
| Best DC Current Accuracy | ±1% + 2 Digits |
| Safety Category Voltage | 300 V, 600 V |
| Battery Type | AM3, 1.5 V AA LR6 |
| Maximum Operating Temperature | +50°C |
| Best Resistance Measurement Accuracy | ±0.7% + 3 Digits |
| Best AC Voltage Accuracy | ±1.5% + 5 Digits |
| Width | 218mm |
| Length | 195mm |
| Dimensions | 195 x 218 x 73mm |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
| Best Capacitance Measurement Accuracy | ±1.9% + 8 Digits |
| Best AC Current Accuracy | ±1.5% + 5 Digits |
