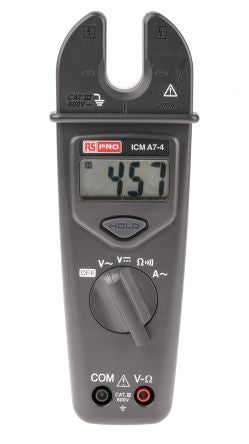

RS PRO ICMA7-4 Clamp Meter, Max Current 200A ac CAT III 600 V; 123-3233
Mã kho: 1233233
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 200A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 2kΩ |
| Model Number | ICMA7-4 |
| AC Current Measurement Resolution | 100mA |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(3% rdg + 3dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 2dgts) |
| Best Resistance Measurement Accuracy | ±1% + 2 Digits |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance |
| DC Voltage Measurement Resolution | 1V |
| Dimensions | 84 x 31 x 175mm |
| Safety Category | CAT III 600 V |
| Maximum Operating Temperature | +50°C |
| Battery Type | IEC 6F22, NEDA 1604, 9V |
| Width | 31mm |
| AC Voltage Measurement Resolution | 1V |
| Safety Category Voltage | 600V |
| Length | 84mm |
| Maximum Conductor Size | 16 (Dia.)mm |
| Power Source | Battery |
| Safety Category Level | CAT III |
| Height | 175mm |
| Battery Life | 250 h |
| Minimum Operating Temperature | -20°C |
| Weight | 280g |
| Jaw Capacity Busbars | 16mm |
