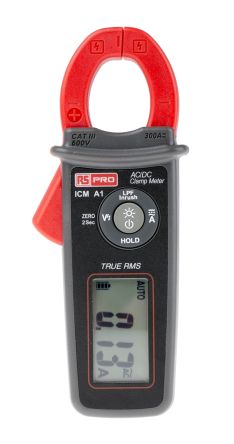

RS PRO ICMA1 Clamp Meter, Max Current 300A ac, 300A dc CAT III 600 V; 123-3256
Mã kho: 1233256
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 300A ac |
| Absolute Maximum DC Current Measurement | 300A dc |
| Model Number | ICMA1 |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Clamp Meter Type | Current Clamp |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Battery Type | A76, LR44 |
| Safety Category Voltage | 600V |
| Safety Category Level | CAT III |
| Weight | 140g |
| Jaw Capacity Busbars | 25mm |
| Battery Life | 20 h |
| Maximum Conductor Size | 25 (Dia.)mm |
| Length | 60mm |
| Width | 31mm |
| Non-Contact Voltage Detector | Yes |
| Height | 147mm |
| Minimum Operating Temperature | 0°C |
| Power Source | Battery |
| Maximum Operating Temperature | +50°C |
| Display Type | LCD |
| True RMS | Yes |
| Safety Category | CAT III 600 V |
| Dimensions | 60 x 31 x 147mm |
| Functions Measured | AC Current, DC Current, Inrush Current, Low Pass Filter |
