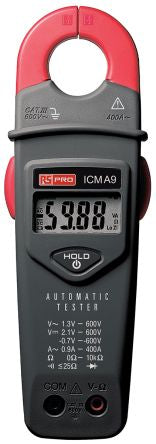

RS PRO ICMA9 Clamp Meter, Max Current 400A ac CAT II 1000 V, CAT III 600 V; 124-1957
Mã kho: 1241957
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 999.9V dc |
| Absolute Maximum Resistance Measurement | 2kΩ |
| Model Number | ICMA9 |
| AC Current Measurement Resolution | 100mA |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1.8% rdg + 3dgts) |
| Best AC Voltage Accuracy | ±(1.5% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 2dgts) |
| Length | 66mm |
| Width | 46mm |
| Power Source | Battery |
| Minimum Operating Temperature | 0°C |
| Functions Measured | AC Current, AC Voltage, DC Voltage, Resistance |
| DC Voltage Measurement Resolution | 100mV |
| Dimensions | 66 x 46 x 198mm |
| Maximum Operating Temperature | +50°C |
| Display Type | LCD |
| Best Resistance Measurement Accuracy | ±2 % + 2 Digits |
| Battery Life | 250 h |
| Maximum Conductor Size | 27mm |
| Safety Category Level | CAT II, CAT III |
| Weight | 260g |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | 9 V Alkaline (NEDA 1604 or IEC 6F22) |
| Height | 198mm |
| Safety Category | CAT II 1000 V, CAT III 600 V |
| Jaw Capacity Busbars | 27mm |
| AC Voltage Measurement Resolution | 100mV |
