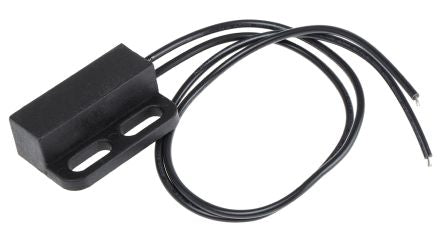

RS PRO Reed Switch Rectangular 140V, NO/NC, 2.75 A; 136-5754
Mã kho: 1365754
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Shape | Rectangular |
| Switch Type | Metal Sensor |
| Normal State Configuration | NO/NC |
| Output Type | Current, Voltage |
| Terminal Type | Wire Lead |
| Maximum Current | 2.75 A |
| Maximum AC Voltage | 140V |
| Maximum DC Voltage | 200V |
| Switching Frequency | 100 Hz |
| Contact Resistance | 100mΩ |
| Total Length | 340mm |
| Length | 40mm |
| Width | 27mm |
| Minimum Operating Temperature | -40°C |
| Depth | 15mm |
| Dimensions | 40 x 27 x 15 mm |
| Maximum Operating Temperature | +85°C |
