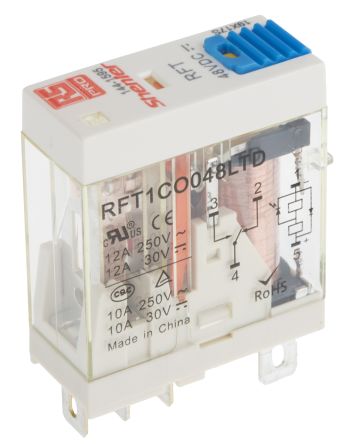

RS PRO SPDT Non-Latching Relay Plug In, 48V dc Coil, 12 A, 10 A Interface Relay Module; 144-1595
Mã kho: 1441595
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 48 V dc |
| Coil Power | 530mW |
| Coil Resistance | 4.3 kΩ |
| Isolation Coil To Contact | 5kV ac |
| Contact Configuration | SPDT |
| Mounting Type | Plug In |
| Switching Current | 10 A, 12 A |
| Terminal Type | PCB Pin |
| Number of Poles | 1 |
| Maximum Switching Current AC | 0.416666666666667 |
| Maximum Switching Current DC | 0 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 30V |
| Maximum Switching Power DC | 0.53 W |
| Depth | 12.6mm |
| Standards Met | CE:CQC, CULus |
| Length | 29mm |
| Maximum Switching Power AC | 1 VA |
| Height | 28mm |
| Series | RFT |
