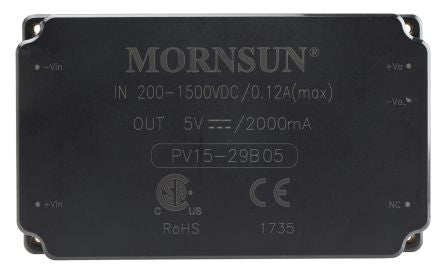

RS PRO 10W DIN Rail Panel Mount Power Supply PCB Mount, Voltage in 200 → 1500 V dc, Voltage out 5V dc; 144-6278
Mã kho: 1446278
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 200 → 1500 V dc |
| Input Voltage Nominal | 800 V dc |
| Isolation Voltage | 4kV ac |
| Power Rating | 10W |
| Output Current | 2A |
| Mounting Type | PCB Mount |
| Number of Outputs | 1 |
| Efficiency | 0.64 |
| Minimum Temperature | -40°C |
| Load Regulation | ±1% |
| Maximum Temperature | +70°C |
| Length | 112mm |
| Standards Met | CE, CISPR 22/EN 55022, CSA, CSA-C22.2 No. 107.1, EN 62109, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, MIL-HDBK-217F, UL 1741 |
| Width | 75mm |
| Series | PV-29B |
| Depth | 40mm |
