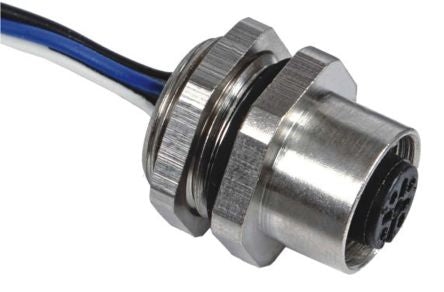

RS PRO Straight M12 to Unterminated Connector & Cable, 5 Core , 100mm Cable; 144-7601
Mã kho: 1447601
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 100mm |
| Number of Cores | 5 |
| Connector A Number of Contacts | 5 |
| Current Rating | 0.166666666666667 |
| IP Rating | IP67 |
| Voltage Rating | 250 V |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.34 mm² |
| Minimum Operating Temperature | -25°C |
| Conductor Material | CuZn |
| Shielding | Unshielded |
| Conductor Resistance | ≥100 MΩ |
| American Wire Gauge | 22 |
| Connector A Housing Gender | Socket |
| Maximum Operating Temperature | +75°C |
| Standards Met | CE, TUV Certified |
