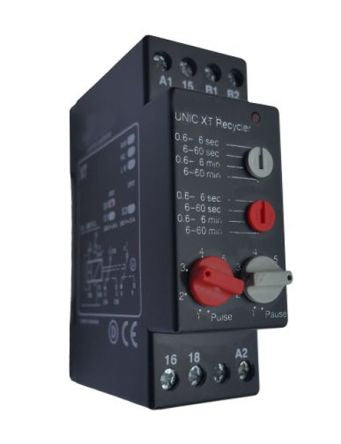

RS PRO Multi Function Time Delay Relay, 11-Pin Connector, 0.6 s → 60 min, 2 Contacts, DPDT; 161-7609
Mã kho: 1617609
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 10.5 → 265 V ac/dc |
| Time Range | 0.6 s → 60 min |
| Mode of Operation | Asymmetrical Recycler with Pause Start, Asymmetrical Recycler with Pulse Start, Delay Pulse, OFF Pulse, ON Delay, ON Pulse, ON Pulse with Control Switch, One Shot Asymmetrical with Control Switch, One Shot Asymmetrical without Control Switch, Release Delay, Release True OFF Delay, Symmetrical Recycler with Pause Start, Symmetrical Recycler with Pulse Start |
| Mounting Type | Plug In |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Time Increment | Minutes, Seconds |
| Power Supply | External |
| Current Maximum | 0.208333333333333 |
| Terminal Type | 11-Pin Connector |
| Minimum Voltage | 10.5 V ac/dc |
| Maximum Voltage | 265 V ac/dc |
| Width | 75mm |
| Length | 27mm |
| Depth | 59.5mm |
| Minimum Operating Temperature | -20°C |
| Time Delay | 100 ms |
| Contact Material | Silver Cadmium Oxide |
| Switch Configuration | DPDT |
| Maximum Operating Temperature | +55°C |
