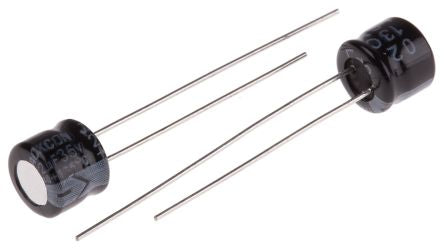

RS PRO 22μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 6 (Dia.) x 5mm +105°C 6mm 2.5mm 5mm; 170-1020
Mã kho: 1701020
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 35 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 6 (Dia.) x 5mm |
| Height | 5mm |
| Length | 5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 6mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Lead Pitch | 2.5mm |
| Series | RS |
| Dissipation Factor | 0.14 |
| Tolerance | ±20% |
| Leakage Current | <=0.01 CV or 3 μA @ 2 min |
| Polarised | Polar |
| Ripple Current | 46mA |
