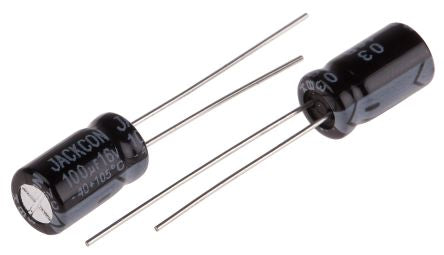

RS PRO 100μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 (Dia.) x 11mm +105°C 6.3mm 2.5mm 11mm; 170-1167
Mã kho: 1701167
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 11mm |
| Height | 11mm |
| Length | 11mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Lead Pitch | 2.5mm |
| Series | RS |
| Dissipation Factor | 0.16 |
| Ripple Current | 135mA |
| Polarised | Polar |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min |
| Tolerance | ±20% |
