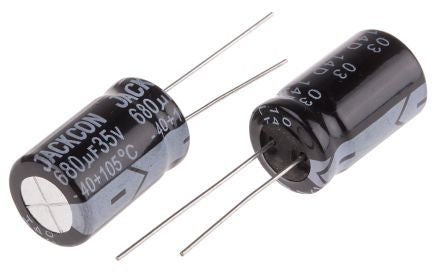

RS PRO 680μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 13 (Dia.) x 21mm +105°C 13mm 5mm 21mm; 170-1227
Mã kho: 1701227
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 35 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 13 (Dia.) x 21mm |
| Height | 21mm |
| Length | 21mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 13mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 2000h |
| Series | RS |
| Polarised | Polar |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min |
| Ripple Current | 750mA |
| Dissipation Factor | 0.12 |
| Tolerance | ±20% |
