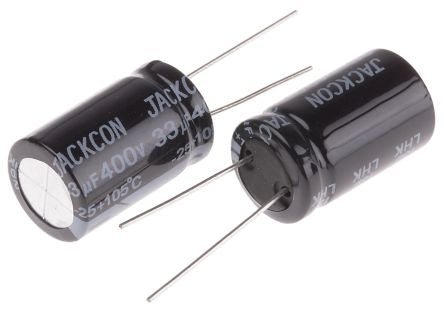

RS PRO 33μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 16 (Dia.) x 26mm +105°C 16mm 7.5mm 26mm; 170-1315
Mã kho: 1701315
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 33 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 16 (Dia.) x 26mm |
| Height | 26mm |
| Length | 26mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 2000h |
| Series | RS |
| Dissipation Factor | 0.2 |
| Leakage Current | <=0.03 CV or 3 μA @ 1 min |
| Polarised | Polar |
| Ripple Current | 220mA |
| Tolerance | ±20% |
