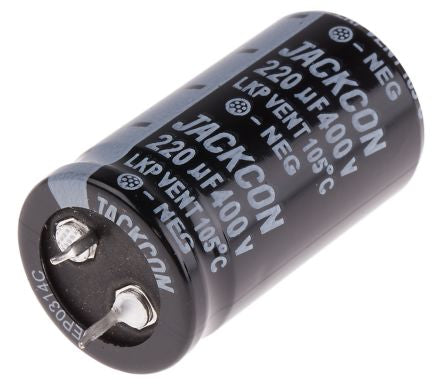

RS PRO 220μF 400V dc Aluminium Capacitors, Through Hole 25 (Dia.) x 45mm +105°C 25mm 10mm 45mm; 173-0289
Mã kho: 1730289
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 25 (Dia.) x 45mm |
| Height | 45mm |
| Length | 45mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 25mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 10mm |
| Series | RS |
| Dissipation Factor | 0.2 |
| Polarised | Polar |
| Leakage Current | =0.02 CV @ 5 min |
| Ripple Current | 1.21A |
| Tolerance | ±20% |
